DESIGN CONCEPT





OPERATION FEATURES

HEADREST ADJUSTMENT

They devote themselves consistently to develop more humanized and environment-friendly chair for a better comfort and healthier lifestyle.

● ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

TECHNICAL SPECIFICATIONS

Mechanism

Seat and Back Movement Sychronized Recline

Mechanism

Seat Cushion Depth Adjustment Button less for-backward 5 positions
Seat Front Angle Adjustment Cycle lock-on 4 positions
Backrest Tilt Tension Adjustment Wheel scaler
Backrest Tilt Angle Adjustment Single lever control adjusting

Gas lift

Adjustable Stroke Single lever control adjusting

Armrest

Armrest Height Adjustment Button less cycle lock-on
Armrest Angle Adjustment Button less & stage less swivel
Armrest Forward And Backward Adjustment Button less for-backward slide
Armrest Leftward And Rightward Adjustment Button less left-right shifting

Backrest

Backrest Height Adjustment Cycle lock-on 4 positions

Lumbar

Lumbar Cushion height Adjustment stage less height adjust

Neckrest

Neckrest Height Adjustment stage less height low adjust
Neckrest Forward And Backward Adjustment Cycle lock-on 4 positions
Curve Adjustment stage less up-down slip

Mechanism

Seat Cushion Depth Adjustment (mm) 35 (5 stage)
Seat Cushion Angle Adjustment (°) 8
Backrest Tilt Tension Adjustment(kg) 21.5～28.5
Backrest Tilt Angle Adjustment(°) 22 (4 position)

Gas lift

Adjustable Stroke(mm) 70~110

Armrest

Armrest Height Adjustment(mm) 75 (stage less)
Armrest Angle Adjustment(°) 18 (stage less)
Armrest Forward And Backward Adjustment(mm) 40
Armrest Leftward And Rightward Adjustment(mm) 20

Backrest

Backrest Height Adjustment(mm) 55/4 position
Backrest catch adjustment (mm) 30

Lumbar

Lumbar Cushion height Adjustment(mm) 40 (Stage less)

Neckrest

Neckrest Height Adjustment(mm) 55 (Stage less)
Neckrest Forward And Backward Adjustment(mm) 25/ 3 position
Strong Point Adjustment(mm) 40 (Stage less)

1 Headrest frame

Nylon

2 Back Frame

Nylon & TPR

3 Back Bar

Aluminum & Nylon & TPR

4 Seat Frame

Nylon

5 Armrest

Plastic & Aluminum &PU & Metal

6 Mechanism

Aluminum& Metal

7 Gas Lift

Metal

8 Base

Aluminum

9 Castor

Nylon& PU

10 Mesh

Elastomeric & polyester

Chair Height (mm)

Without Headrest With Headrest
1010 1030

Armrest Height(mm)

Without Headrest With Headrest
610 610

Seat Height(mm)

Without Headrest With Headrest
425 425

Arm Width(mm)

Without Headrest With Headrest
700 700

Seat Width(mm)

Without Headrest With Headrest
510 510

Backrest Width(mm)

Without Headrest With Headrest
505 505

Chair Depth(mm)

Without Headrest With Headrest
635 635

Base (mm)

Without Headrest With Headrest
R 350 R 350

MODELS & COLORS

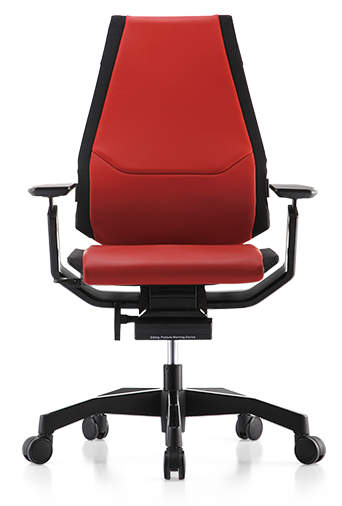

LEATHER / FABRICS
MESH
